Define Filtration Inc.

About

Define Filtration Inc.is the Leading Manufacturer of Filter cartridges, Filter Elements, Filter housings . Filter Bags, We Provide Filtration Solutions in every applications of Air, gas, and Liquid.

Latest update

SS Welded Pleated Filter Cartridge : Define Filtration has the expertise in Manufacturing  SS Filter Cartridge , Welded Cartridge, SS Pleated cartridge in Ahmedabad, Gujarat. We are offering wide range of SS cartridges Useful for various applications. We are located at Ahmedabad, in India. Features and Benefit: Excellent mechanical strength No media migration Size customisation Stable pore shapes High permeability Low pressure drop High differential pressure with stand capacity Strong corrosion resistant High dirt-holding capacity (longer lifetime) High temperature resistance Back flushing
SS Welded Pleated Filter Cartridge : Define Filtration has the expertise in Manufacturing SS Filter Cartridge , Welded Cartridge, SS Pleated cartridge in Ahmedabad, Gujarat. We are offering wide range of SS cartridges Useful for various applications. We are located at Ahmedabad, in India. Features and Benefit: Excellent mechanical strength No media migration Size customisation Stable pore shapes High permeability Low pressure drop High differential pressure with stand capacity Strong corrosion resistant High dirt-holding capacity (longer lifetime) High temperature resistance Back flushing
view all updates 1505540431

Products

PP Wound Filter Cartridge
PP Wound Filter Cartridge INR 0 INR 0 Features and Benefit: Standard and customizes sizes fit most housings Filtration rating from 1 to 100 Micron High Strength & pressure resistance Manufactured in continuous length Full range of sizes from 10” to 60” length Excellent flow with low pressure drop High dirt holding capacity Compatible with a wide range of fluids NSF & FDA approved Technical Specifications: Sizes: 10”, 20”, 30”, 40”, 60” Long Micron Rating: 0.5, 1, 5, 10, 25, 50, 75, 100 Outer Diameter: 58 mm (2.3”),64 mm (2.5”) , 100 mm (4”) , 110mm (4.5”) , 6” , 8” Inner Diameter: 25mm Configuration: Double Open Type (DOE Type), Code 7 (226 O Ring Design) Construction: Polypropylene With Polypropylene Core, Cotton with Stainless steel core, Glass fiber with stainless steel core Applications: Vegetable Oils Dilute Acids Alkalis Organic solvents Portable liquids Glass Fiber Filter Wound High Temperature filtration of Mineral Acids Organic solvents Oils Polypropylene Wound Filter Cartridge Organic Acids Oils Concentrated Alkalis Water Organic solvents Electroplating solution Photographical process fluid. True 1469014567
578f62279ec66c39b8d63200
-0%
PP Spun Filter Cartridge
PP Spun Filter Cartridge INR 0 INR 0 We are a leading PP Spun Filter Cartridge manufacturers in Gujarat , India. We are offering wide range of PP Spun Filter cartridge That Are useful for various applications. We are located at Ahmedabad, in India. Features and Benefit: Thermally bonded polypropylene micro fiber construction for higher filtration efficiency Wide chemical compatibility, using 100% pure polypropylene Materials meet FDA requirements throughout Graded density structure for maximum dirt holding capacity High void volume, resulting in low Differential pressure and excellent dirt Holding capacity Supported core for overall strength Consistent flow rate and superior Filtration performance Ideal for a wide variety of industrial Differential pressure and excellent dirt Free of surfactants, binders and adhesives Excellent flow with low pressure drop High dirt holding capacity High strength & pressure resistance 100 % polypropylene for wide chemical compatibility One piece construction up to 1016 mm Nominal & absolute filtration rating Technical Specifications: Filtering Medium: Polypropylene Removal Ratings: 0.5µm, 1 µm, 2µm, 3µm, 5µm, 10µm, 15µm, 20µm, 25µm, 50µm, and100µm. Dimensions: Standard Cartridges Lengths: 10" , 20" , 30" , 40" Out side Diameter: 63mm In side Diameter: 25 mm Jumbo Cartridges Out side Diameter: 4.5” ,6”, 8” In side Diameter: 25 mm Standard Cartridge: 0.05 m /10” Jumbo Cartridge: 0.09 m /10” Operating Conditions: Maximum temperature: 70 C, Maximum differential pressure: 2.4kg/cm 2 Collapse pressure: 4.1 kg/cm2 End Cap Configuration: DOE (Double open end) and Code 7 Style ( 226 o Ring) Applications: Food and beverage Process water Pharmaceuticals Pre filtration Fine chemicals Process streams Water purification High purity water Petrochemicals Photographic Chemicals Emulsions Metal finishing Electroplating Resin traps Potable water True 1469014491
578f61db9ec66b2a18573af5
-0%
Pleated Dust Collection Bag
Pleated Dust Collection Bag INR 0 INR 0 We offer high quality Pleated Dust Collection Bags which are made of 100% polyester media. These bags offer high efficiency across a wide range of particle sizes. Pleated dust collection filter bags optimize the collector's efficiency as it contains 300% to 500% more media than conventional dust collector bags. These are easier to clean because the dust does not penetrate the media surface. It offers spun bounded media, surface filtration and lower pressure drop across the filter; when compare to other convention type filter bags. Features and Advantages: Leak Proof Very Stable Do Not Break or Fall Through Sheet Open Pleat Spacing Low Consumption Of Compressed Air (For Cleaning) Cages are integral part of bags, hence no cages are required Top and Bottom in EPDM / Natural rubber Or Metal end caps Reduction In Downtime & Maintains Easy To Install & Remove Filter Area 3 To 4 Times Larger Than Traditional Filter Bag High Efficiency Due To Surface Filtration Technical Specifications: Coating PTFE coating for oil & moisture removal Aluminum coating for antistatic application Available sizes: Ø 160 mm x 500 mm Long, Ø 160 mm x 1000 mm Long, Ø 160 mm x 1400 mm Long, Ø 160 mm x 2000 mm Long Filtration area: 0.96 m2 to 5.5 m2 Applications: Powder coating Shoot blasting Steel power Pharmaceuticals Chemicals Cement Paint & Pigment Metal & Mineral. True 1469014676
578f62949ec66b2a18573b46
-0%
Bag Filter Housing
Bag Filter Housing INR 0 INR 0 We are a leading Bag Filter Housing manufacturers in Gujarat , India. We are offering wide range of Bag filter housings that are useful for various applications. We are located at Ahmedabad, in India. Features and Benefits: Large-Area, Heavy-Duty Baskets Housings are permanently piped Covers Are O-Ring Sealed All Housings Made from SS 316 L , SS 316 & SS304 Are Mirror polished to Resist Adhesion of Dirt and Scale Flow rates are very high Suitable for PP Collar, Rigid Ring & Snap Band Bags Low pressure drop High dirt holding capacity Low down time Flow rate up to 2000 m3/hr Custom design services Carbon Steel Housing are painted coated externally & internally epoxy coated Positive sealing arrangement to avoid bypassing Quick opening tri clovers & fly nut design Low maintenance & easy to operate ASME code stamp available Multiple Bag Filter / Duplex Bag Filter /Jacketed Bag filter Unit designs are available High Temperature & High Pressure Design are available Special Option Include Filter Bag Hold-Down Devices, Sanitary, Construction Different Outlet Connections, Higher Pressure Ratings, Extra- Length Legs, Heat Jacketing, and Adapters for Holding Filter Bags. Technical Specifications: Material of construction: SS 316L, SS 316, SS 304, carbon steel (All Grade), mild steel, alloy metals, polypropylene, lead lining, rubber lining, teflon lining Sizes Bag Filter System Suitable for: Ø 4" x 10" Long Filter Bag, Ø 4" x 17" Long Filter Bag, Ø 7" x 17" Long Filter Bag, Ø 7" x 32" Long Filter Bag, Flow Rate 3 Capacity: Up to 2000 m /hr Gasket / O Ring Material: Neoprene, Nitrile, Silicone, Viton, Buna N, EPDM, PTFE Multiple Bag Filter System Suitable for: 3 Nos. Of Ø 7” x 32” Long Filter Bag, 4 Nos. Of Ø 7” x 32” Long Filter Bag, 5 Nos. Of Ø 7” x 32” Long Filter Bag, 7 Nos. Of Ø 7” x 32” Long Filter Bag, 9 Nos. Of Ø 7” x 32” Long Filter Bag Bag Filter Suitable for Bag Configuration: PP Collar Bag, Rubber Collar Bag, Snap Band Bag, Rigid Ring Bag, Flange Collar Bag, End Connections Available, NPT / BSP Threaded, Flanged Table E / Table F, ANSI B 16.5, ASA 150 # RF, DIN Standard, Tri Clover Adaptors, SMS /Dairy End Connection Applications: Cutting Oils Varnishes Lacquers Paints Petroleum Derivatives Processing Chemicals Inks Resins Coolants True 1469182605
5791f28d9ec66b1394052bf3
-0%
SS Filter Cartridge
SS Filter Cartridge INR 0 INR 0 We are a leading SS Filter Cartridge , Welded Cartridge, SS Pleated cartridge ,manufacturers in Gujarat , India. We are offering wide range ofSS cartridges Useful for various applications. We are located at Ahmedabad, in India. Features and Benefit: Excellent mechanical strength No media migration Size customization Stable pore shapes High permeability Low pressure drop High differential pressure with stand capacity Strong corrosion resistant High dirt-holding capacity (longer lifetime) High temperature resistance Back flushing Technical Specifications: Standard Sizes: 10”, 20”,30” ,40” Long (Customized Sizes Are Available) Micron Rating: 0.5, 1, 3, 5, 10, 20, 25, 50 Standard Outside Diameter: 64 mm, 116 mm Inner Diameter: 28 mm Configuration: Double Open Type (DOE Type), Code 7 F (226 O Ring Design), Code 7 S (226 O Ring Design/flat), Code 3 F (222 O Ring Design), Code 3 S (222 O Ring Design/flat), 1” NPT / BSP Connection Type of Filters: Stainless Steel Sintered Metal Type Stainless Steel Random Fiber / Sintered Metal Fiber Type Stainless Steel wire Mesh Type Type of Filter Design: Pleated Configuration design Plain Cylindrical design Applications: Analytical devices Medical devices Oil filtration Aerosol application Cross flow filtration Gas filtration R.O. Pre filtration Polymer filtration Gas – liquid separation Catalyst recovery in petrochemical / chemical industries Hot gas filtration Fuel & hydraulic oil filtration. True 1469279739
57936dfb9ec66805685b8047
-0%

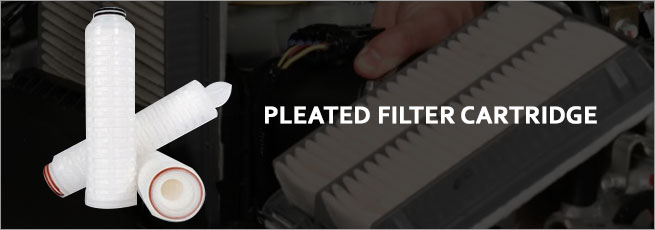

SS Welded Pleated Filter Cartridge
SS Welded Pleated Filter Cartridge INR 0 INR 0 We are a leading SS Filter Cartridge , Welded Cartridge, SS Pleated cartridge ,manufacturers in Gujarat , India. We are offering wide range ofSS cartridges Useful for various applications. We are located at Ahmedabad, in India. Features and Benefit: Excellent mechanical strength No media migration Size customization Stable pore shapes High permeability Low pressure drop High differential pressure with stand capacity Strong corrosion resistant High dirt-holding capacity (longer lifetime) High temperature resistance Back flushing Technical Specifications: Standard Sizes: 10”, 20”,30” ,40” Long (Customized Sizes Are Available) Micron Rating: 0.5, 1, 3, 5, 10, 20, 25, 50 Standard Outside Diameter: 64 mm, 116 mm Inner Diameter: 28 mm Configuration: Double Open Type (DOE Type), Code 7 F (226 O Ring Design), Code 7 S (226 O Ring Design/flat), Code 3 F (222 O Ring Design), Code 3 S (222 O Ring Design/flat), 1” NPT / BSP Connection Type of Filters: Stainless Steel Sintered Metal Type Stainless Steel Random Fiber / Sintered Metal Fiber Type Stainless Steel wire Mesh Type Type of Filter Design: Pleated Configuration design Plain Cylindrical design Applications: Analytical devices Medical devices Oil filtration Aerosol application Cross flow filtration Gas filtration R.O. Pre filtration Polymer filtration Gas – liquid separation Catalyst recovery in petrochemical / chemical industries Hot gas filtration Fuel & hydraulic oil filtration. True 1469279775
57936e1f9ec66805685b8055
-0%
Pleated Dust Collection Cartridge
Pleated Dust Collection Cartridge INR 0 INR 0 These Pleated Dust Collection Cartridge are available in various pleated depths and height that give a desired filtration area. The polyester media is made using high tenacity filament yarn that offers stability against hot gases. Also, these offer high end features like washability and durability. We are engaged in providing our clients variety of Pleated Dust Collection Cartridges that is fabricated using 100% polyester media with different coatings Features and Benefits: High filtration area up to 20 m Universal Fixing arrangements Open Pleat Spacing Low Consumption Of Compressed Air (For Cleaning) High Efficiency Due To Surface Filtration Very High Air To cloth Ratio Very high filtration efficiency Technical Specifications: Coating PTFE Coating for Oil & Moisture Removal Aluminum Coating for antistatic application Sizes Sr. No. Diameter of Element Length of Filter Element: 150 mm X 500 mm, 1000mm, 1400mm, 2000mm, 225 mm X 500 mm, 1000mm, 1400mm, 2000mm, 325 mm X 300 mm, 500mm, 600mm ,1000mm,1400mm Customized sizes are available on special request Filtration area: 0.96 m2 to 20.0 m2 Applications: Steel & Power Powder coating Metals & Minerals Shoot Blasting Cement Paints & Pigments Pharmaceuticals. True 1469282682
5793797a9ec668224819737d
-0%
Resin Bonded Filter Cartridge
Resin Bonded Filter Cartridge INR 0 INR 0 Our range of Resin Bonded Filter Cartridge or Resin Bonded Cellulose Melamine filter cartridges is manufactured from high grade cellulose fibers. Using melamine resin, these cartridges are structured together to make them stronger than the plated cartridge. Some of its main features are rugged, durable and poriferous. Our cartridge material adheres with the FDA specifications, hence find exhaustive usage in portable drinking water, beverages, cosmetics and syrups. The clean white cellulose fiber should be used with the specified temperature to prevent the liquid from getting any change in taste, odor or color. Features and Benefit: Certificated By FDA Free of surfactants, binders And adhesives Longer service life Excellent flow with low pressure drop Temperature limit 4.4 Deg C to 93.3 Deg C High dirt holding capacity Technical Specifications: Standard Sizes: 10”, 20”, 30”, 40” Micron Rating: 1 to 25 Outside Diameter: 64mm Inner Diameter: 28 mm Applications: Gasoline Alcohols Photographic solutions Food & Beverages : Bottled water, Flavors, Polishing Lines Pharmaceuticals : Base product clarifications , Membrane prefilter Water Treatment : Membrane Protection, Resin Trap Paints & Inks Resins Metal Finishing : Plating solution , paints and resins, products Wash Fine Chemicals : Solvents, Process Streams, Water Purification Edible oil Mineral Oil Petrochemicals : Water flood, Completion Fluids, Amines Cosmetics : Alcohols, Essential oils , Water lines. True 1469356314
5794991a9ec66835e0b48487
-0%
View All
